AM-AMC 40

da | postato in: Schede tecniche | 0

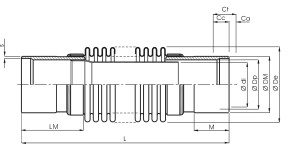

TIPO : AM TIPO : AMC
 AMC  AMC
DN CORSA [mm] L

[mm]		 DIMENSIONI [mm] R
[N/mm]		 Am [cm2] PESO

[Kg]		 CODICE
Cc Ca Ct M DM s d di De AM

9901…

 AMC

9902…
40 10 5 15 253 53 48,3 3,68 40,9 34 67 442 26 1,4 .0040.040.1
11 6 17 295 68 597 1,8 .0040.040.2
50 10 4 14 239 53 60,3 3,91 52,5 46 80 324 38 1,6 .0050.040.1
13 7 20 276 81 484 39 2,2 .0050.040.2
65 14 6 20 250 53 76,1 5 64,3 57 101 449 61 3,2 .0065.040.1
17 8 25 301 102 568 62 4,0 .0065.040.2
80 15 7 22 279 73 88,9 5,49 77,9 71 118 359 83 4,0 .0080.040.1
17 9 26 315 119 493 84 4,8 .0008.040.2
100 16 8 24 282 73 114,3 6,02 102,3 94 145 349 131 5,6 .0100.040.1
19 10 29 373 147 692 132 8,1 .0100.040.2
125 13 6 19 270 73 141,3 6,55 128,2 120 173 536 190 7,2 .0125.040.1
20 9 29 308 174 488 191 8,5 .0125.040.2
24 12 36 395 176 788 194 12 .0125.040.3
150 16 8 24 279 73 168,3 7,11 154,1 146 205 618 270 9,9 .0150.040.1
23 12 35 320 206 540 272 12 .0150.040.2
25 13 38 384 207 790 273 15 .0150.040.3
200 5 3 8 232 73 219,1 8,18 202,7 195 261 2450 448 14 .0200.040.1
14 7 21 291 261 1180 448 17 .0200.040.2
23 11 34 350 261 735 448 20 .0200.040.3
27 14 41 382 262 820 451 23 .0200.040.4
250 6 3 9 235 73 273 9,27 254 247 318 2920 680 20 .0250.040.1
16 8 24 300 318 1165 680 23 .0250.040.2
26 13 39 365 318 730 680 27 .0250.040.3
31 16 47 399 319 810 683 31 .0250.040.4
300 5 3 8 243 73 323,8 9,52 305 295 373 7595 946 27 .0300.040.1
14 7 21 321 3040 34 .0300.040.2
20 10 30 373 2170 38 .0300.040.3
34 17 51 503 1265 49 .0300.040.4
350 10 5 15 252 73 355,6 9,52 337 327 413 3550 1128 31 .0350.040.1
15 7 22 284 413 2370 1128 34 .0350.040.2
30 15 45 380 413 1180 1128 43 .0350.040.3
43 22 65 460 415 1120 1134 57 .0350.040.4
400 10 5 15 256 73 406,4 9,52 387 377 465 4985 1452 39 .0400.040.1
15 8 23 290 3325 44 .0400.040.2
31 16 47 392 1660 57 .0400.040.3
42 21 63 460 1245 66 .0400.040.4
450 10 5 15 256 73 457,2 9,52 438 426 515 5505 1810 45 .0450.040.1
15 8 23 290 3670 50 .0450.040.2
31 15 46 392 1835 65 .0450.040.3
46 24 70 494 1225 81 .0450.040.4
500 10 5 15 256 73 508 9,52 489 473 566 6030 2215 50 .0500.040.1
15 7 22 290 4020 56 .0500.040.2
31 15 46 392 2010 73 .0500.040.3
46 23 69 494 1340 90 .0500.040.4
600 9 5 14 256 73 609,6 12,7 584 568 666 7060 3127 70 .0600.040.1
15 7 22 290 4700 77 .0600.040.2
30 14 44 392 2350 97 .0600.040.3
45 22 67 494 1570 117 .0600.040.4
700 9 5 14 256 73 711,2 12 687 671 770 8170 4243 79 .0700.040.1
15 7 22 290 5440 87 .0700.040.2
30 14 44 392 2720 111 .0700.040.3
44 22 66 494 1820 135 .0700.040.4
800 26 0 26 304 68 812,8 25 763 747 901 6270 5701 315 .0800.040.1
40 0 40 344 4180 328 .0800.040.2
45 22 67 424 2510 355 .0800.040.3
63 31 94 504 1790 382 .0800.040.4
